AI Assistant for Legal Team

Building an AI Assistant for a Legal Team

TL;DR — I built an AI-powered Client Relationship Management (CRM) workflow for a small legal team, integrating Outlook, a self-hosted CRM, and LLMs to automate client opportunity tracking, task creation, and internal coordination.

The project main design principles are:

✅ Simplicity: for adoption by non-technical users
✅ Data ownership: self-hosted infrastructure on client premises
✅ Vendor independence: open API stack with no SaaS lock-in

Code and documentation available:
Github — CRM Workflow

Context and Motivation

The legal office manages hundreds of ongoing client matters, including:

▪️ Intellectual property (IP) filings (logos, patents)
▪️ Company registrations
▪️ Tax reporting and compliance

Each request type follows a multi-step workflow, for example:

initial consultation → contract sent → ... → invoice paid

Keeping track of all these pipelines manually created overhead and risk of human error. Commercial CRMs were too bulky, expensive, or unfit for the office’s custom legal workflows.

This solution was built to evolve step by step, from Excel to CRM to agentic CRM.

Design Philosophy

🔁 Human-in-the-loop: AI augments but doesn’t replace staff. Humans validate and refine updates.

🔧 Built for AI: From day one, the system was architected for AI integration—well-documented, API-first, and fully observable.

🧩 Hackable CRM: Lightweight, REST-based, with a clean UI and open source deployment.

Features

✅ Already Implemented
▪️Extract client and opportunity information from incoming emails
▪️Automatically generate notes and tasks linked to each case based on internal workflow rules

🔜 In Progress
▪️Summarize case files – for internal collaboration and client updates
▪️CRM AI chatbot – conversational access to CRM records (e.g. “What’s the status of Client A’s trademark?”)
▪️User Role Management – integrate MS & CRM user permissions for secure multi-user collaboration

Architecture & Stack

🧠 LLM Engine
Connects to the CRM, parses emails, makes decisions using tools like read_email(), create_task() (e.g. “Create note for client X about signed contract”)

📩 MS Graph API
Fetches emails, calendars, and SharePoint data

📂 Twenty CRM API
Writes updates to CRM about clients, opportunities, and creates notes, and tasks

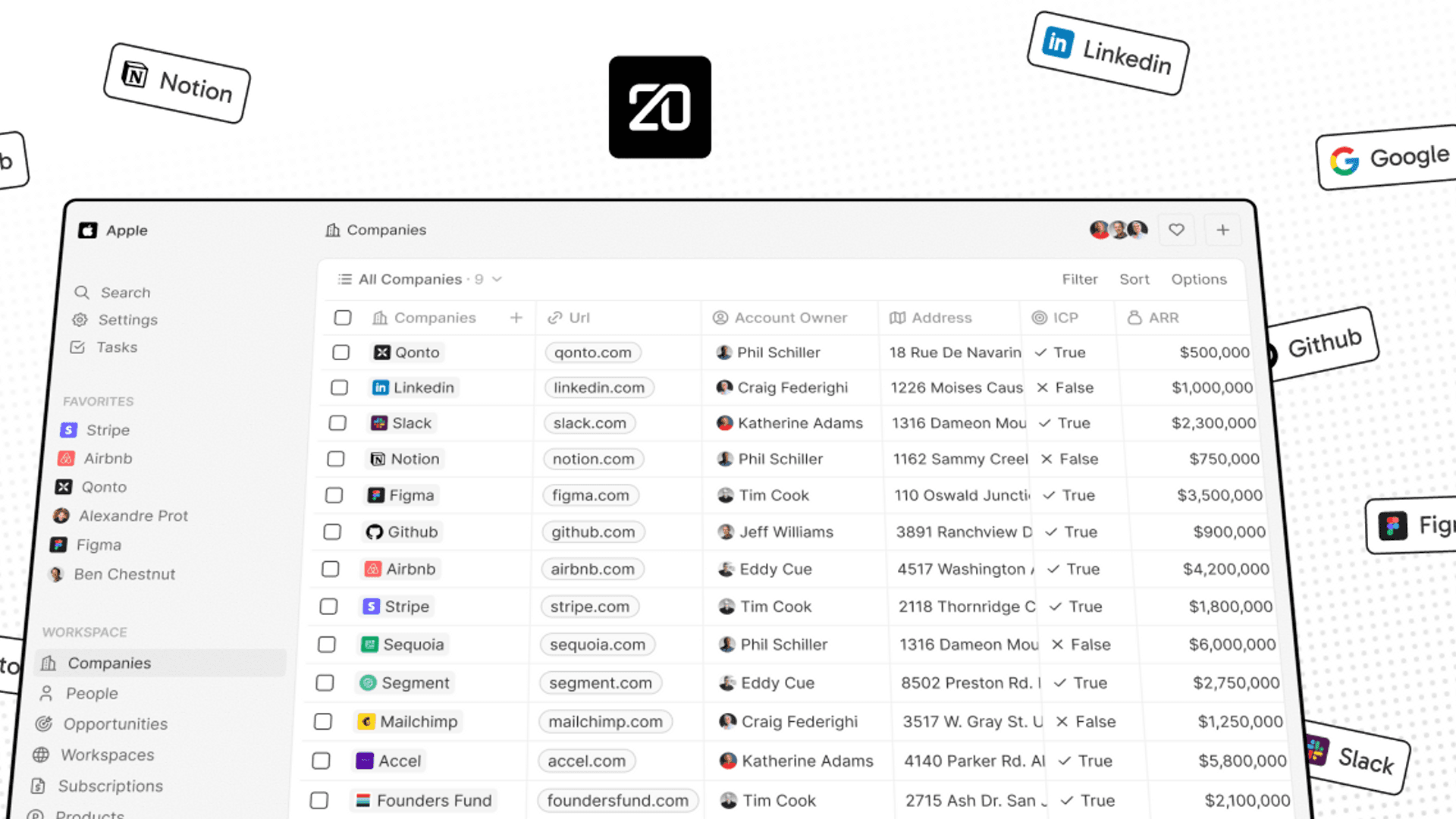

🖥️ Self-hosted frontend
Twenty CRM self-hosted app, a lightweight CRM frontend supporting multi-user authentication

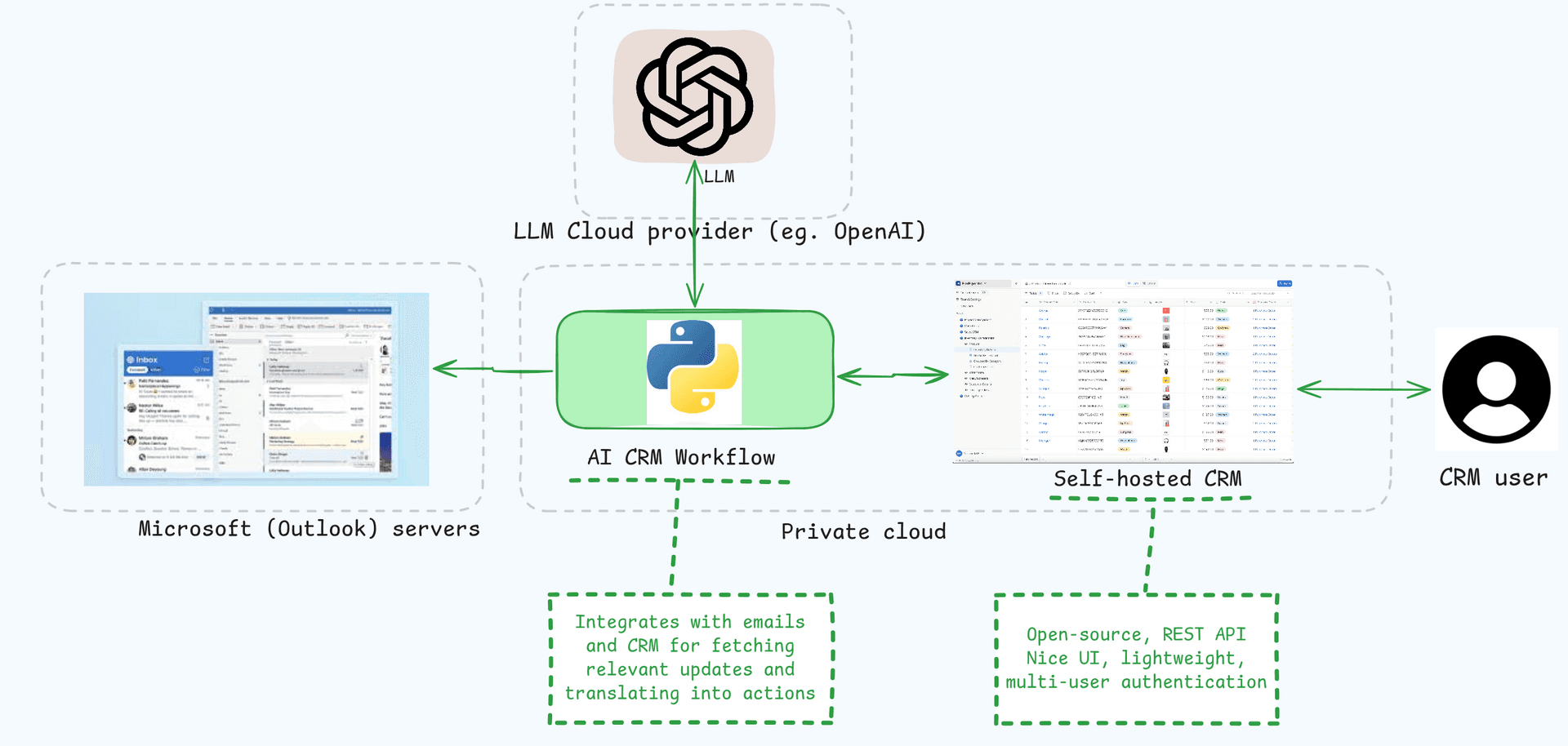

AI CRM system architecture

Data flow

The client updates are sourced from the business email inboxes and interpretated by the LLM into actionable updates to the CRM.

AI workflow

From the agent perspective, each email triggers a new request with the following inputs and expected output / actions

Inputs
  - Outlook emails
  - CRM records
  - Legal process metadata

Outputs:
  - New or updated CRM opportunities
  - Auto-generated tasks and notes
  - Audit-friendly logs of every AI action

The agent uses tools and APIs to respond to changes in email context:

1. Parse email content
2. Check if client exists → update or create
3. Match or create opportunity
4. Create note or task if required

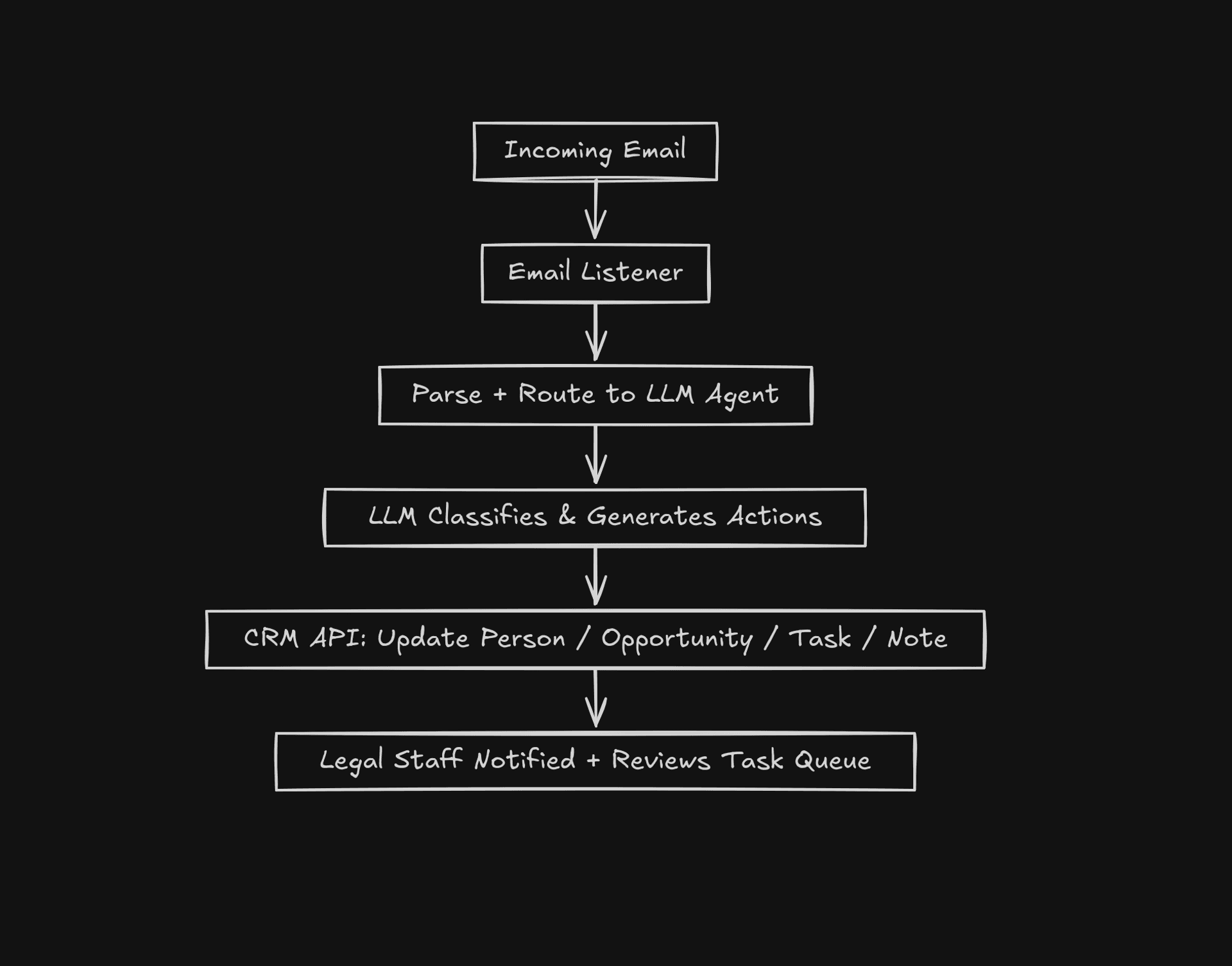

Visualizing the agent prompt as a workflow diagram

Why This Matters

A CRM designed for AI is a solid foundation for scaling legal operations.

Rather than retrofit AI into an existing system, we built an open, modular CRM from the start—fully ready for future LLM integration.
The AI assistant does not replace humans, it does the repetitive work for them and enable them to focus on the key decisions.
